High Speed Wire Drawing Machine YH-LSJ-WS9

Yanhuang high speed wire drawing machine 7-advantage:

Ø Safety: Horizontal wire drawing drum, “0” work injury when wire broken

Ø Eco-friendly: Special Horizontal layout (gravity + dust removal collection)

Ø Energy Saver: Energy saving is 8% -10% compared with the traditional straight line wire drawing machine

Ø Low maintenance cost: Paten design reducer with lower failure rate; the maintenance of frequency converter is simpler

Ø More stable production: Unique horizontal axial cooling technology, tank immersion cooling, to ensure higher stability of machine operation

Ø Work intensity reduction: 7- 8 meters of visual work range, reducing operators inspecting the mileage

Ø Small area: Save 30% -40% compared to traditional straight line wire drawing machine

Technical Parameter:

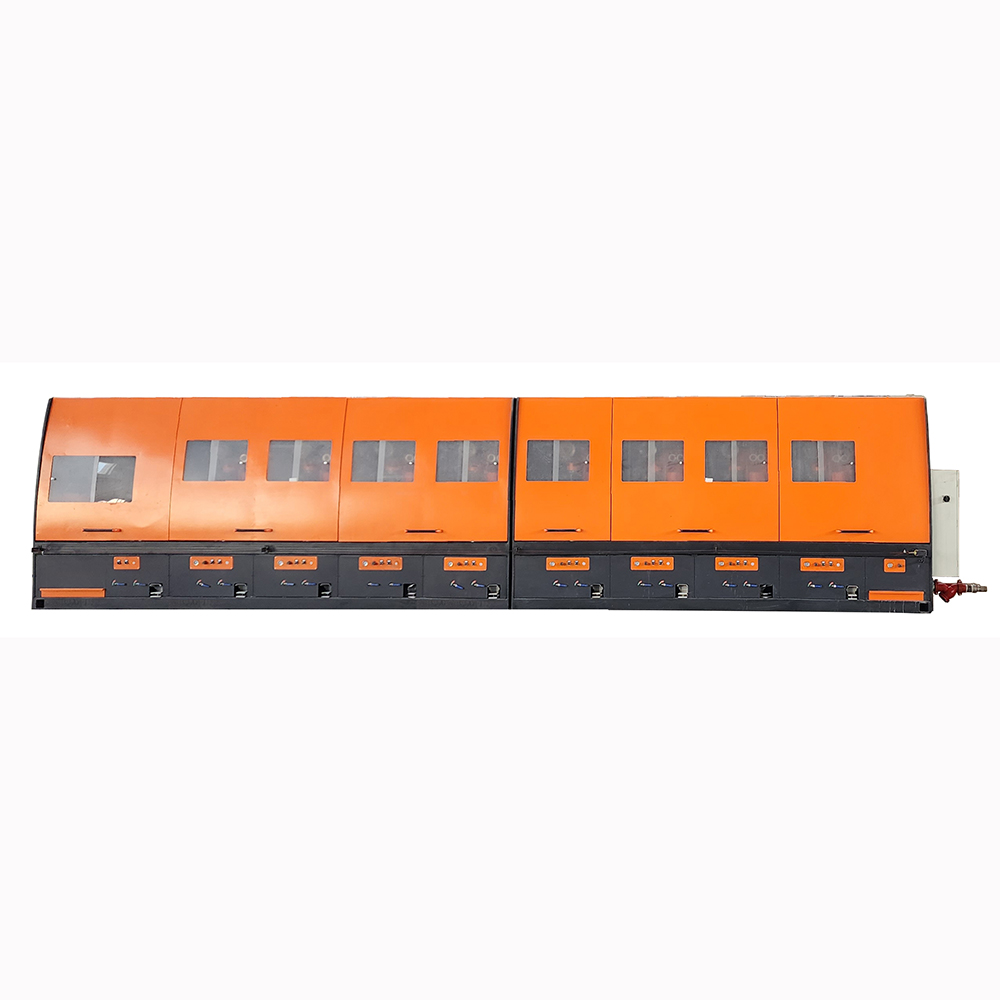

Yanhuang High Speed Horizontal Wire Drawing Machine

1. Nail Wire Material Grade: SAE1006-1020

2. Inlet diameter: Ф 6.5 mm

3. Outlet diameter: Ф 2.0 mm

4. Drawing Consequence：Ф 6.5→Ф 2.0 mm

5. Operation Direction:From Left to Right or Righ to Left

6. Drawing speed: Ф 6.5→Ф 2.0 mm，max : 14m/s

7. Production Capacity: 20 Tons - 22 working hours per day, usage rate is 90%
